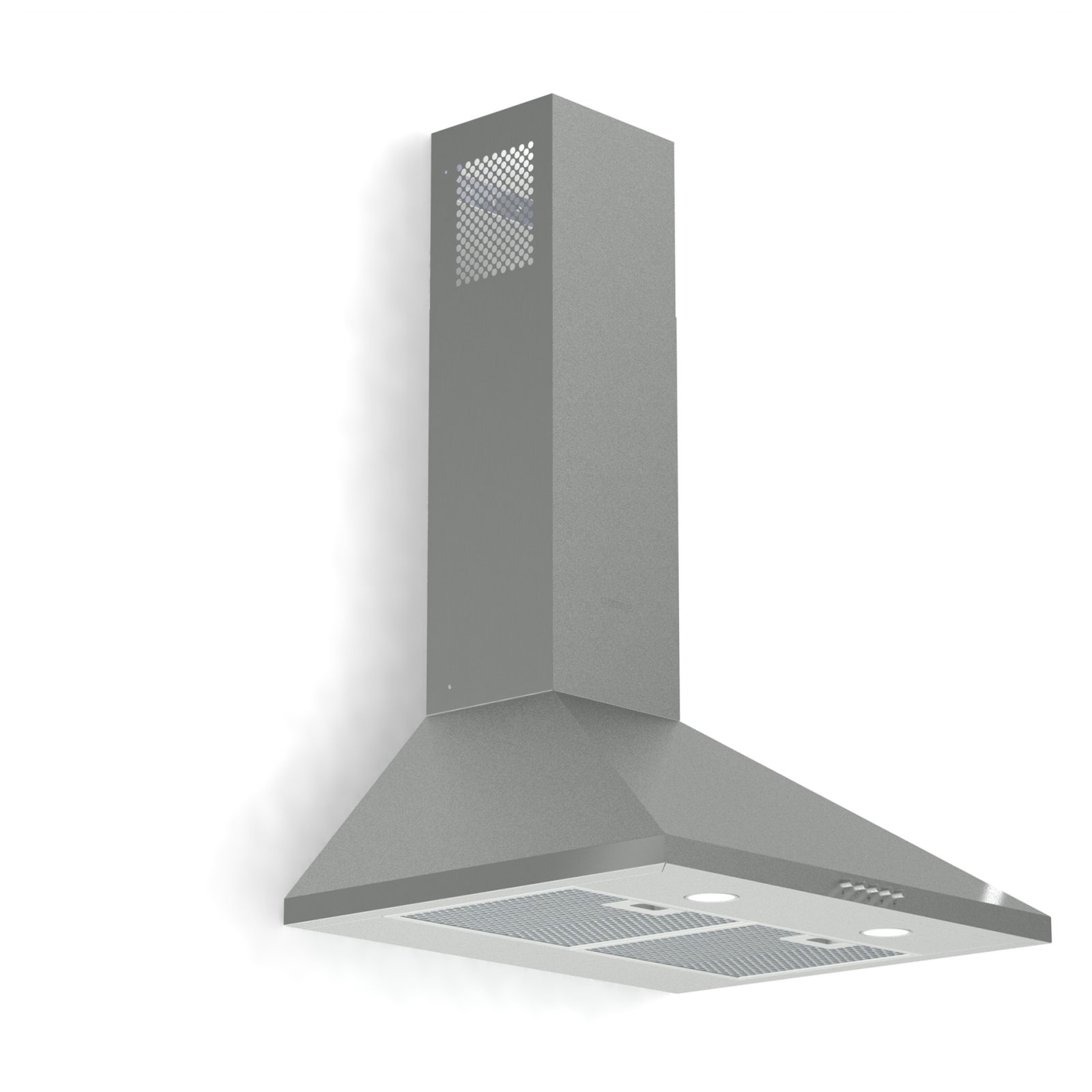

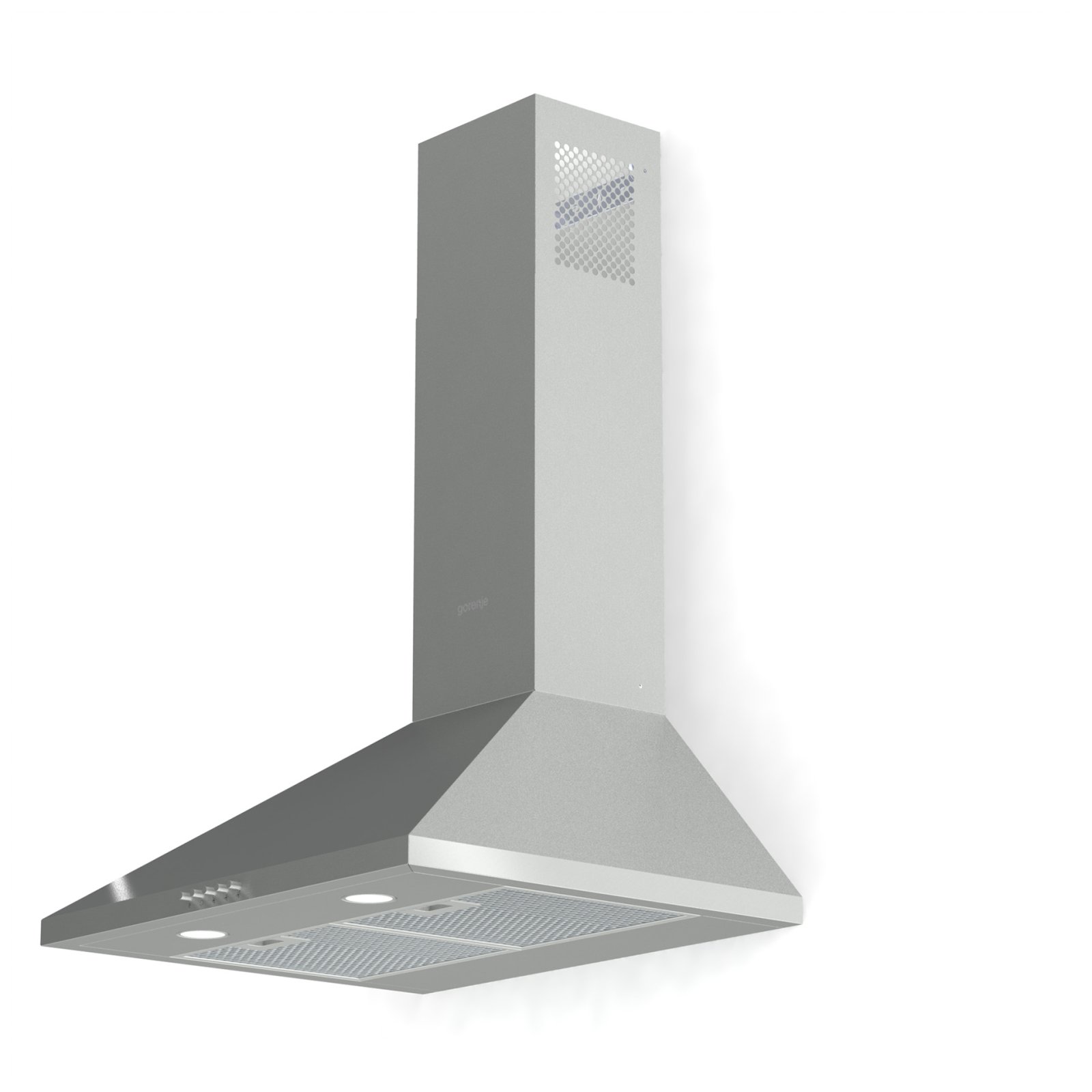

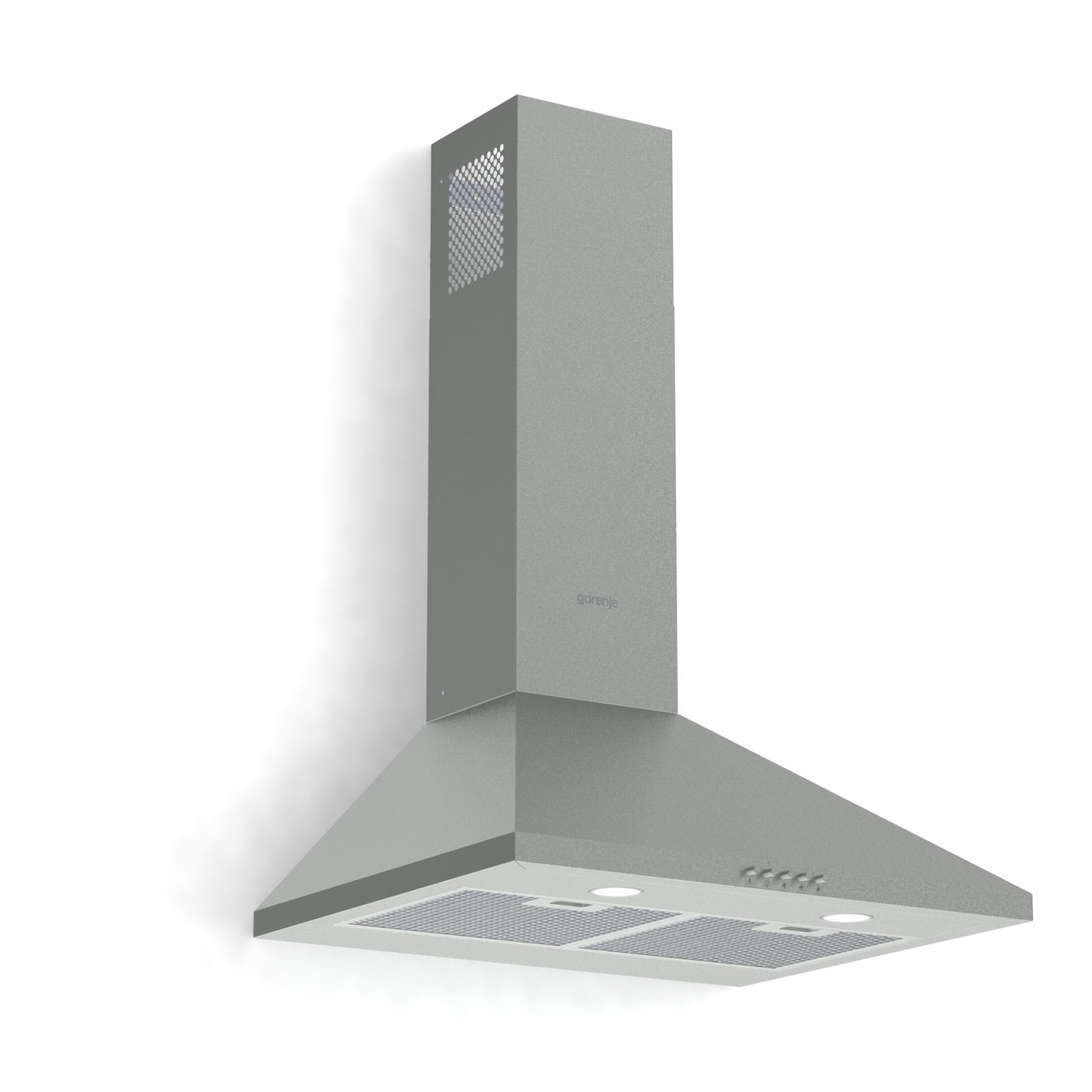

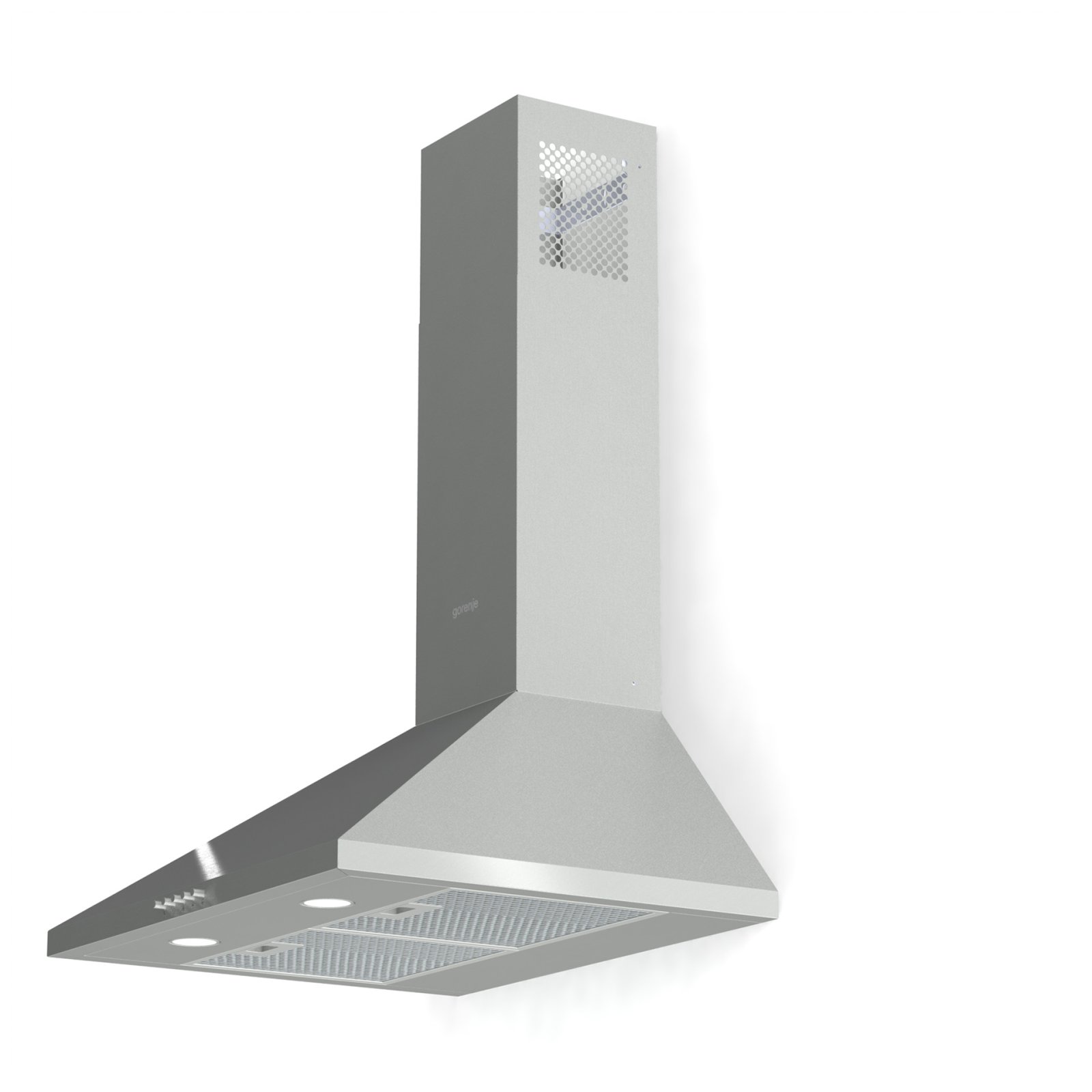

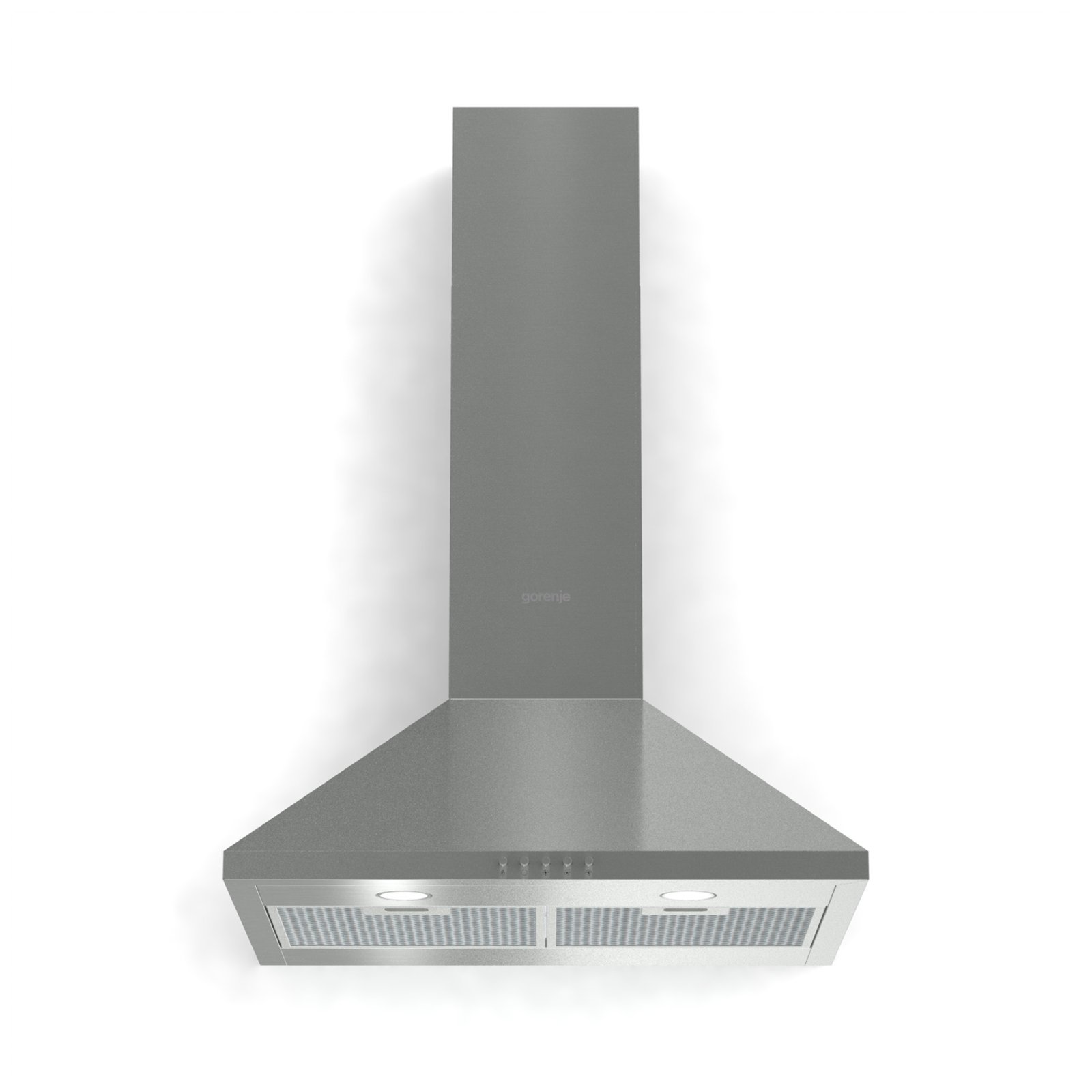

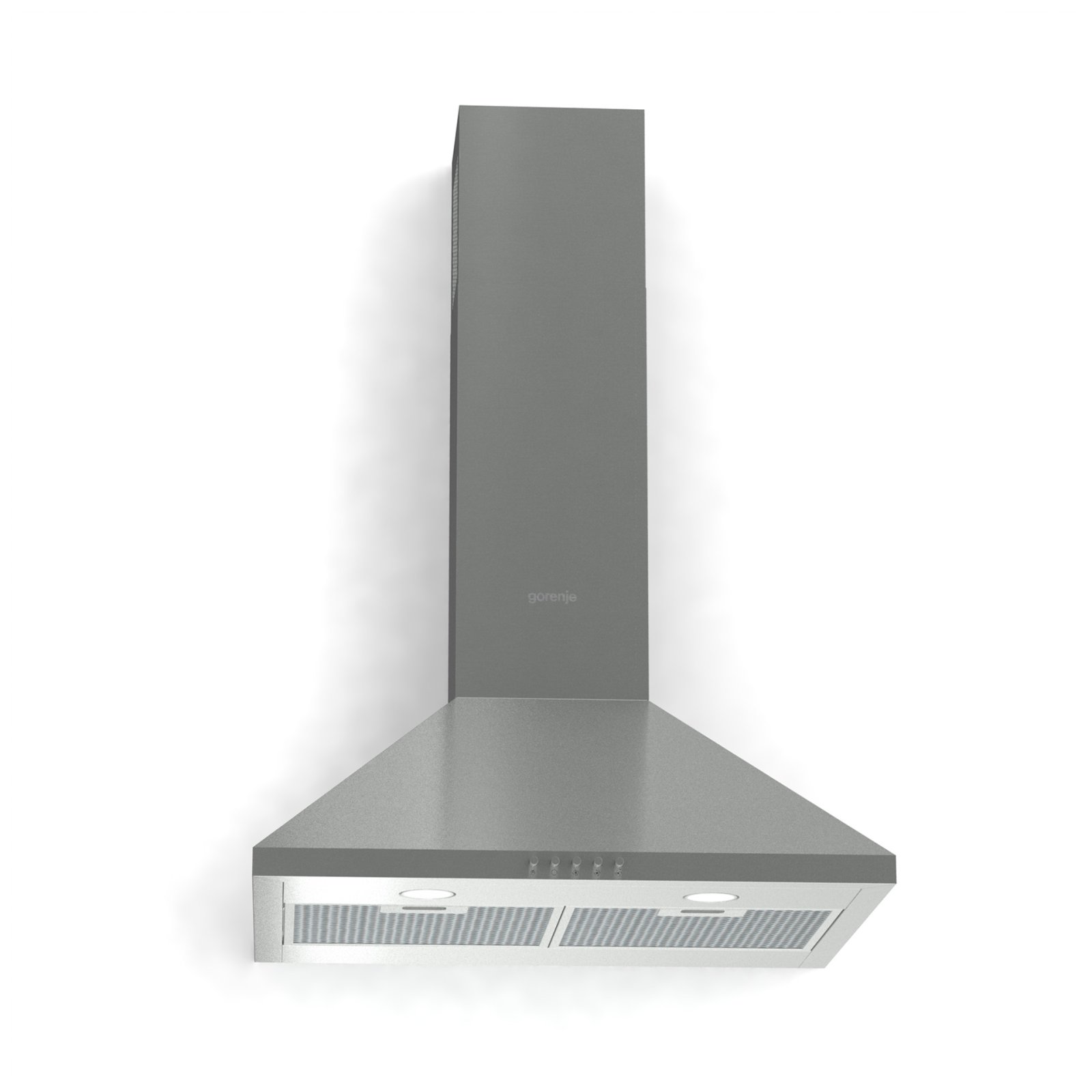

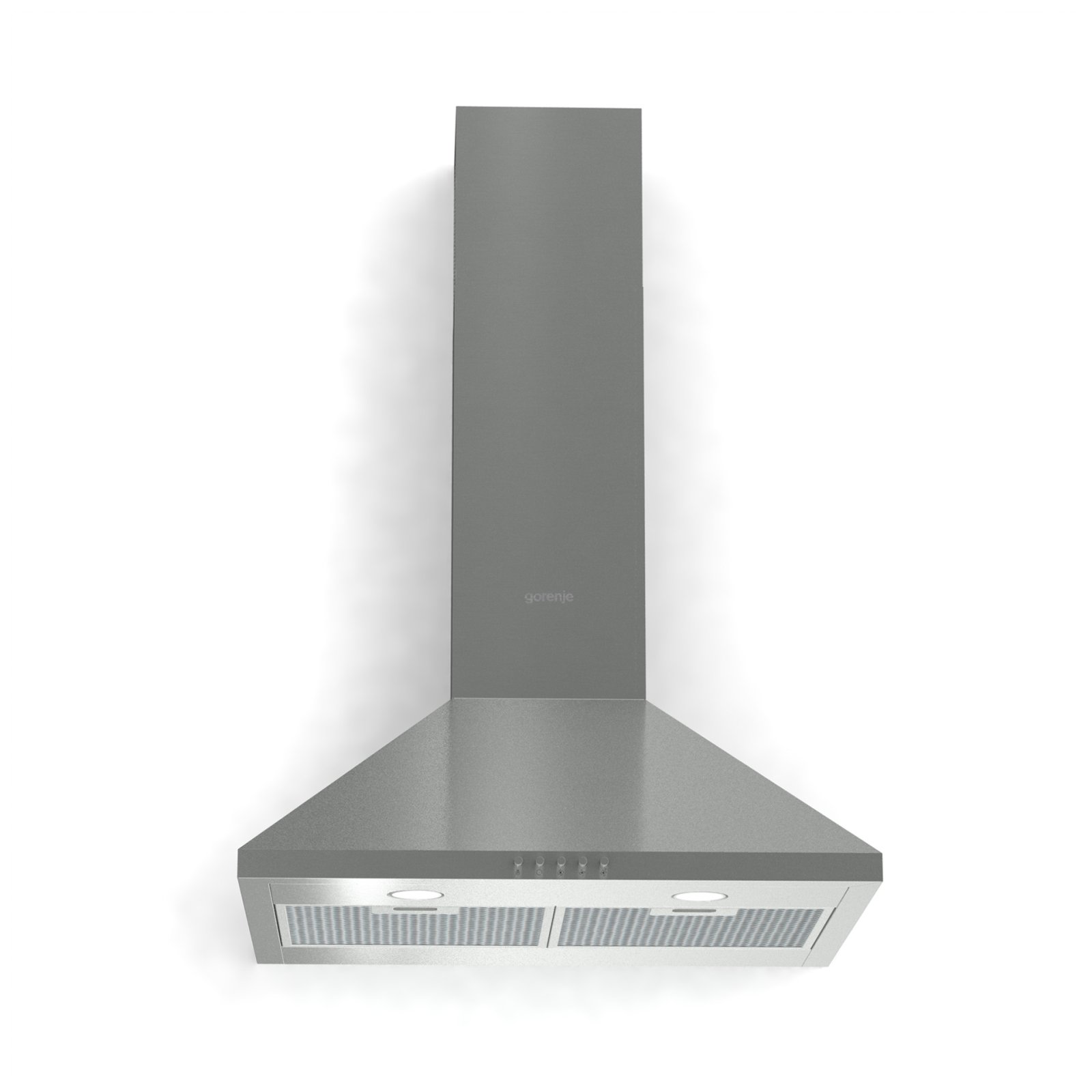

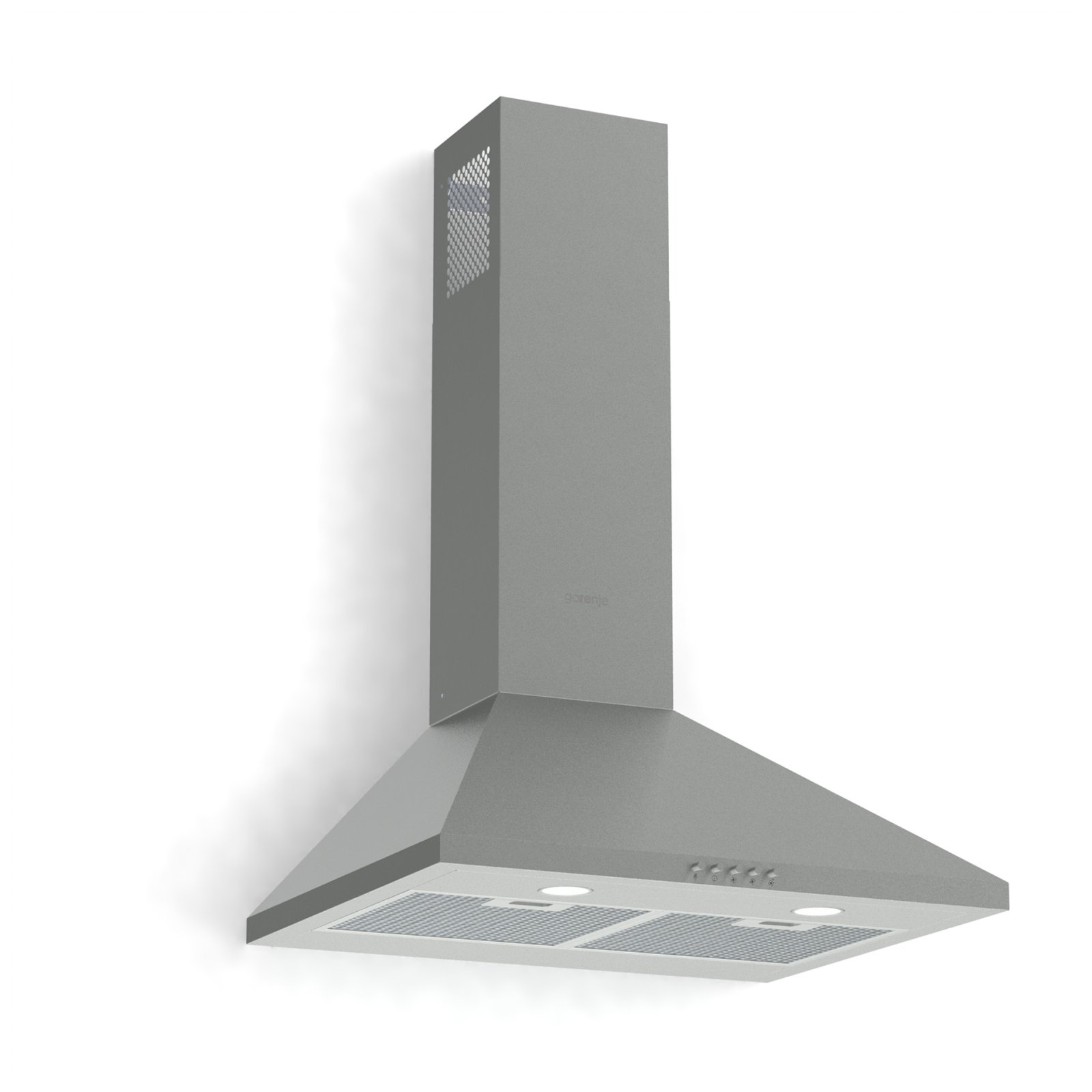

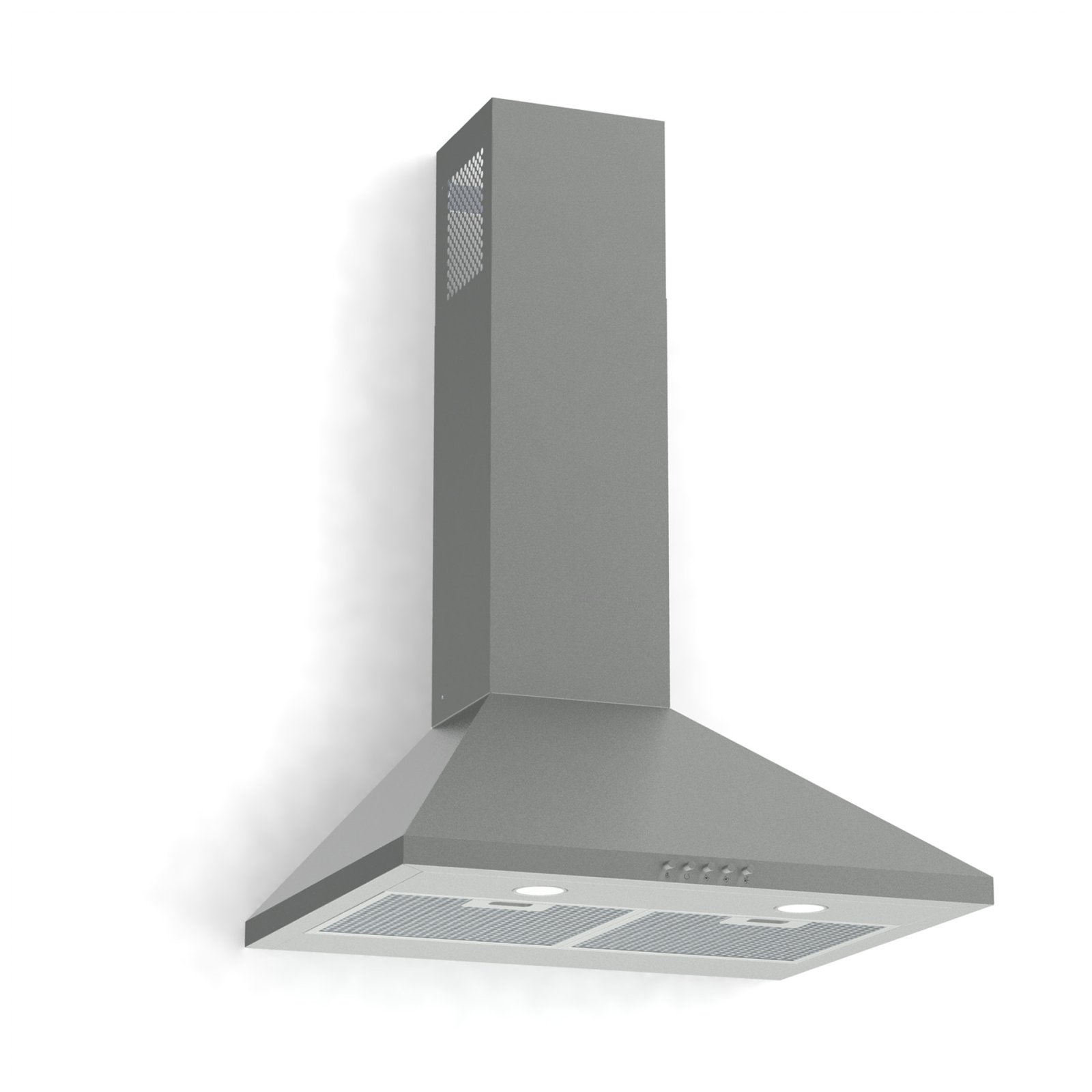

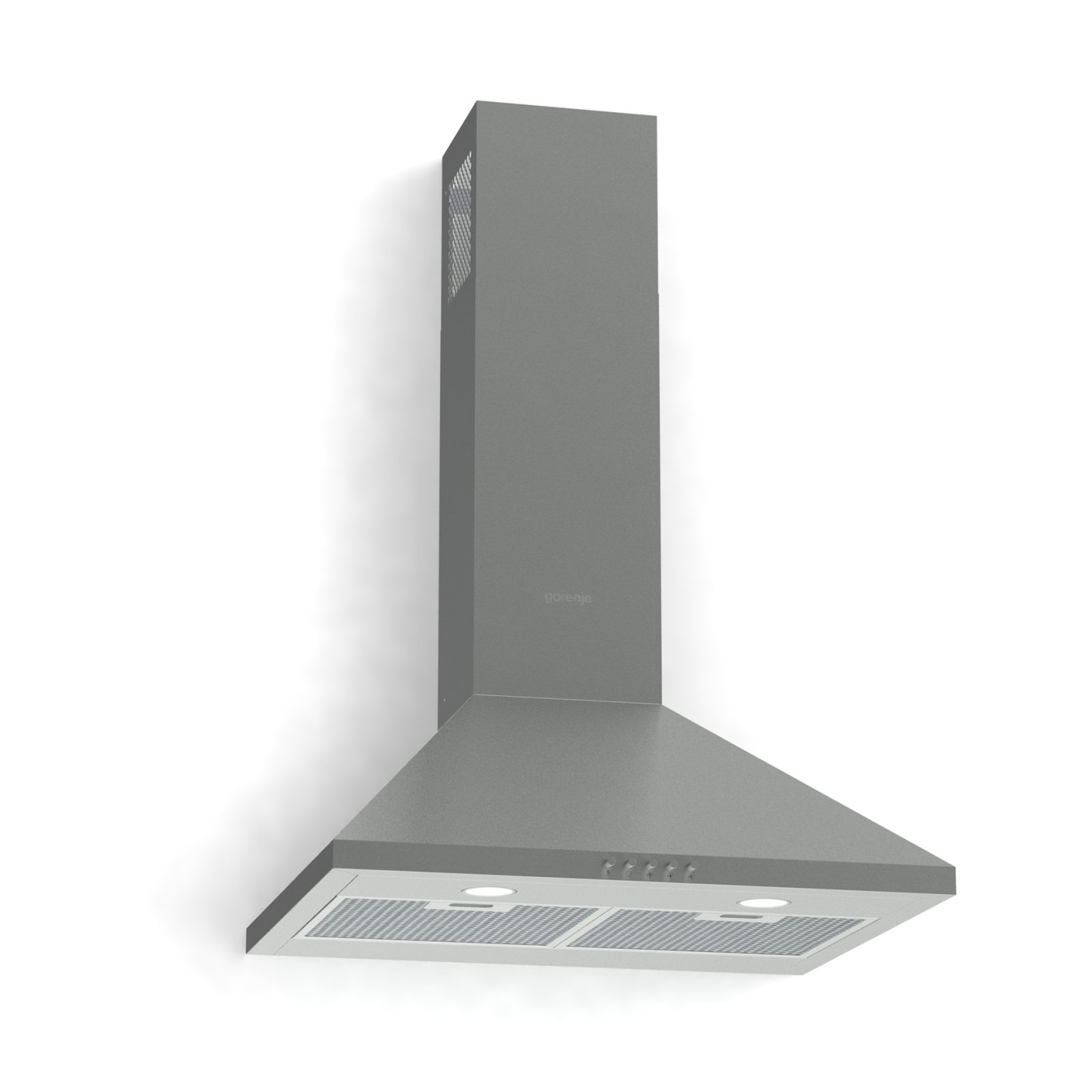

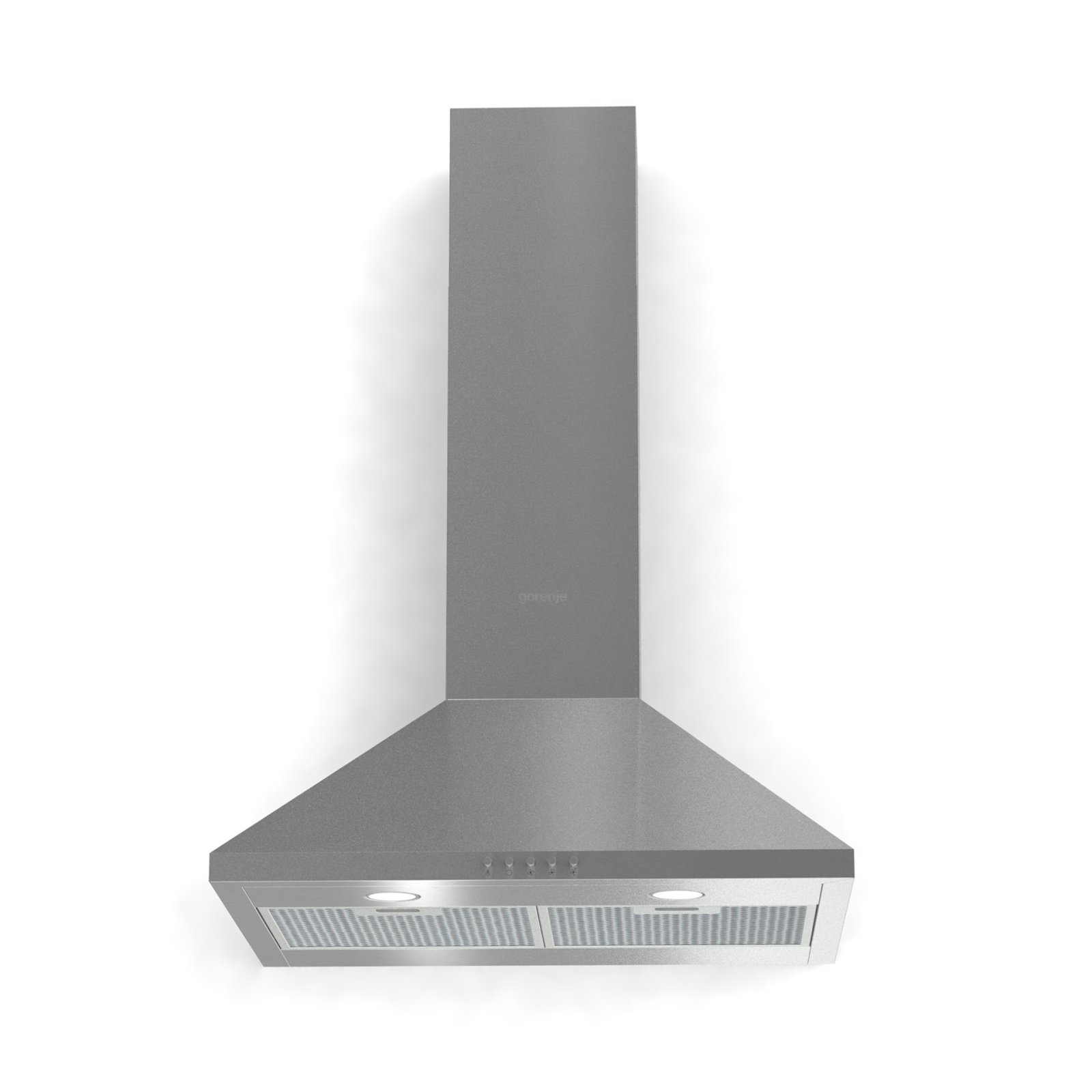

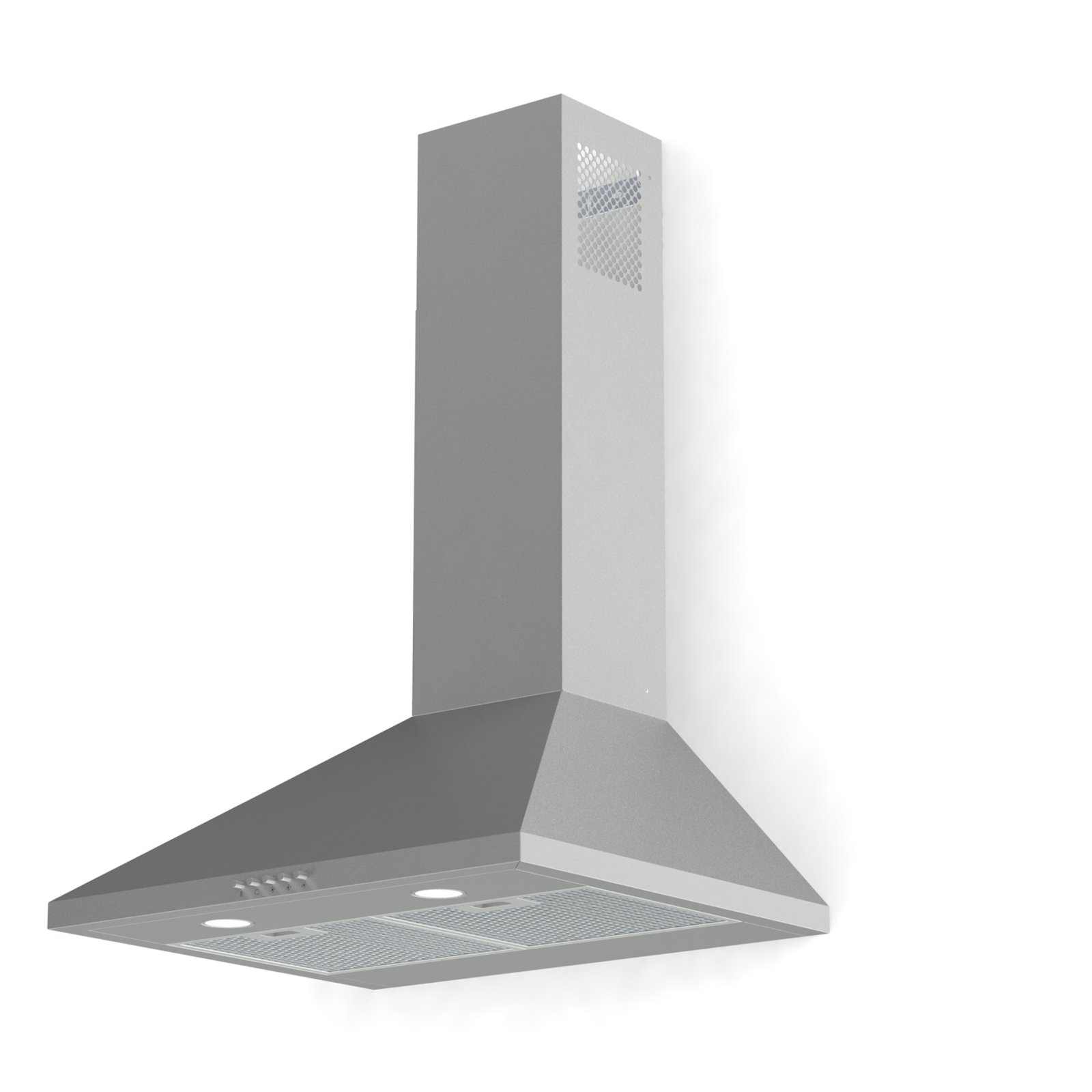

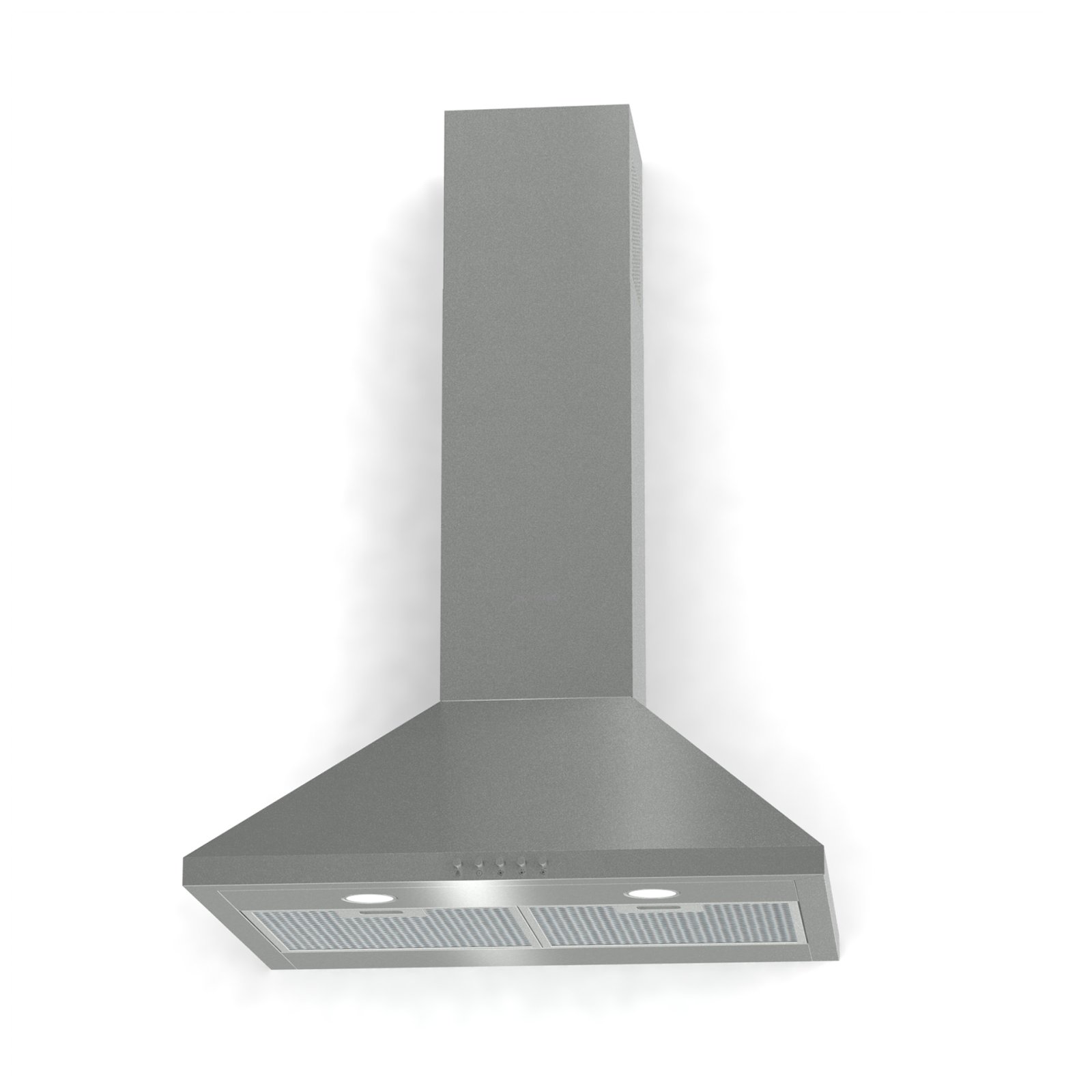

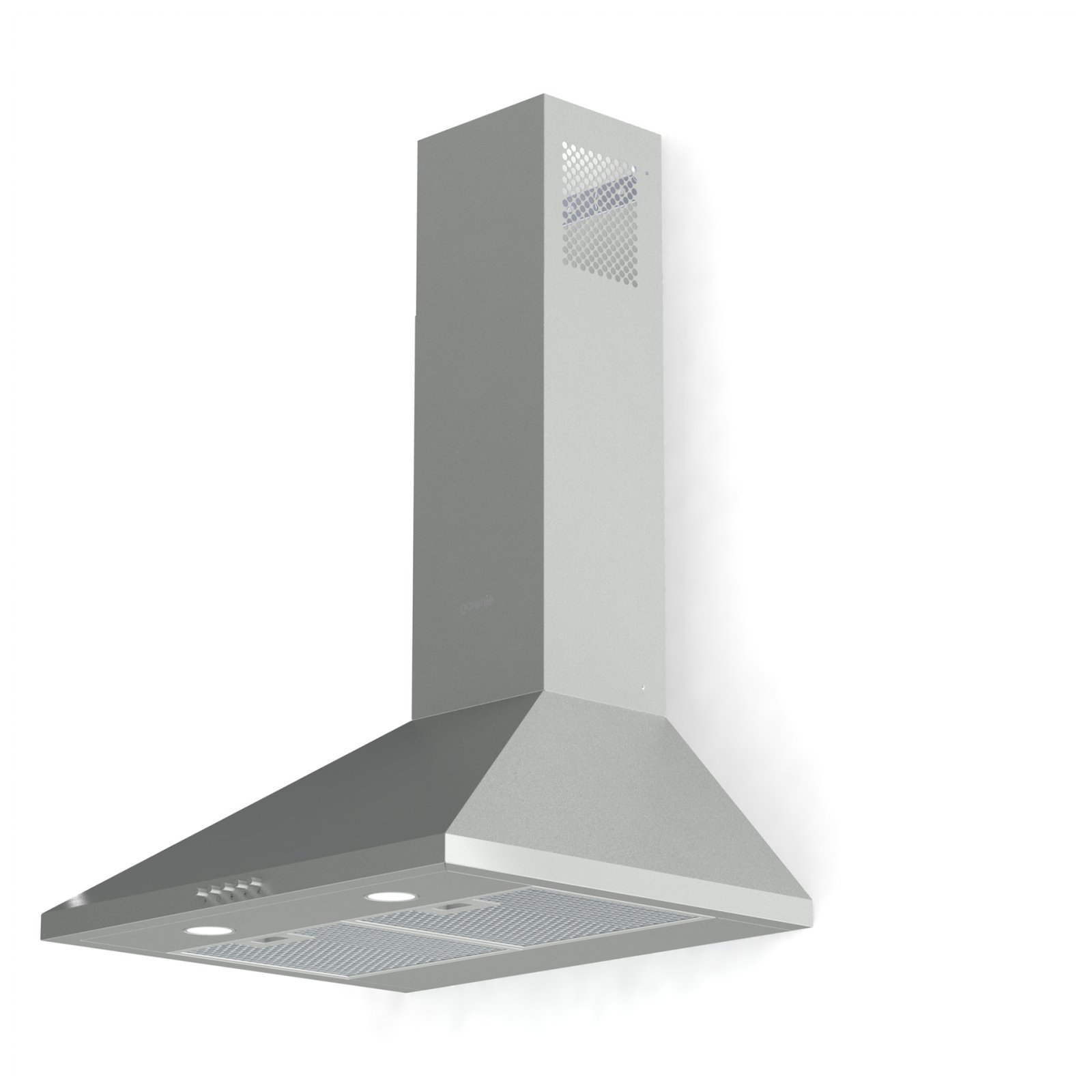

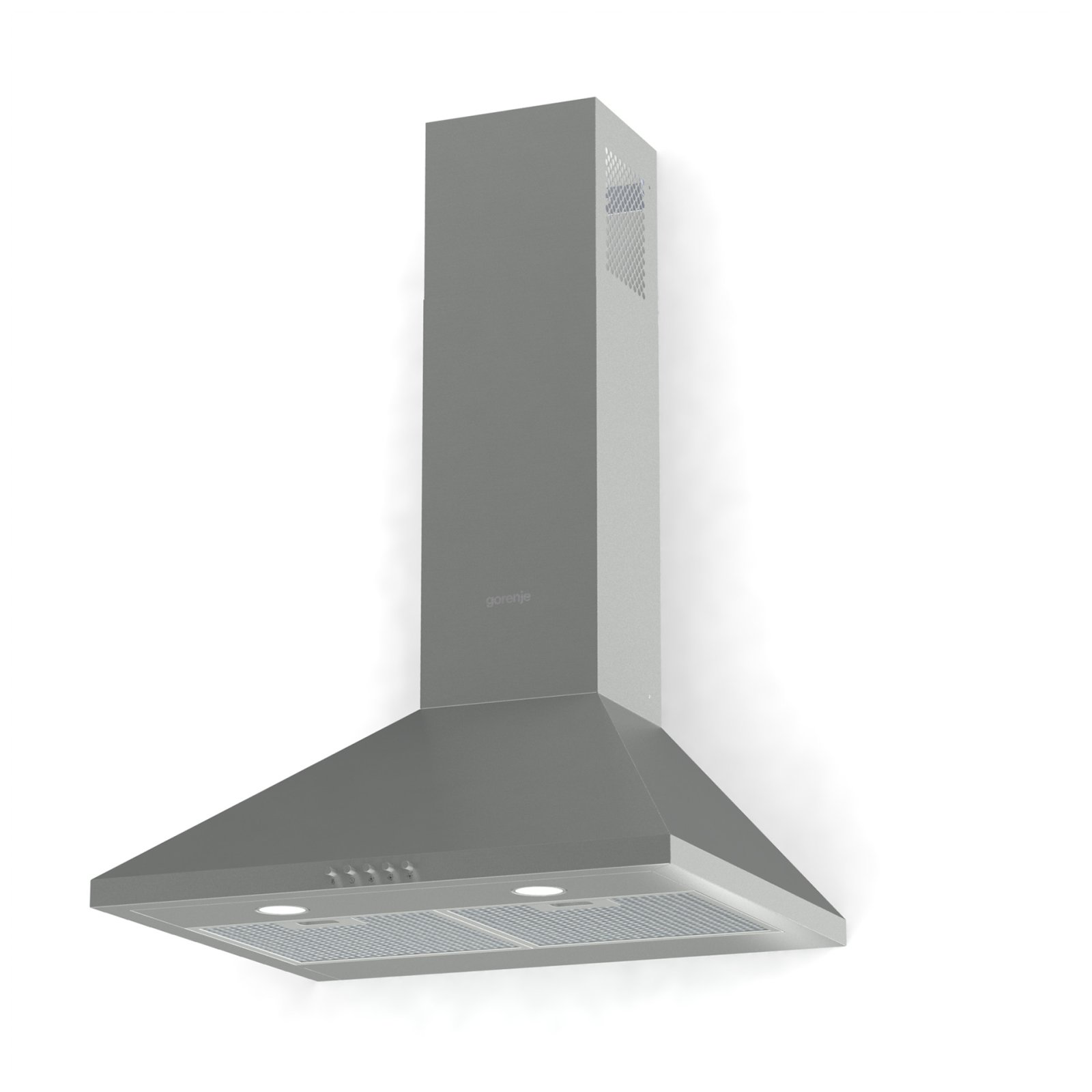

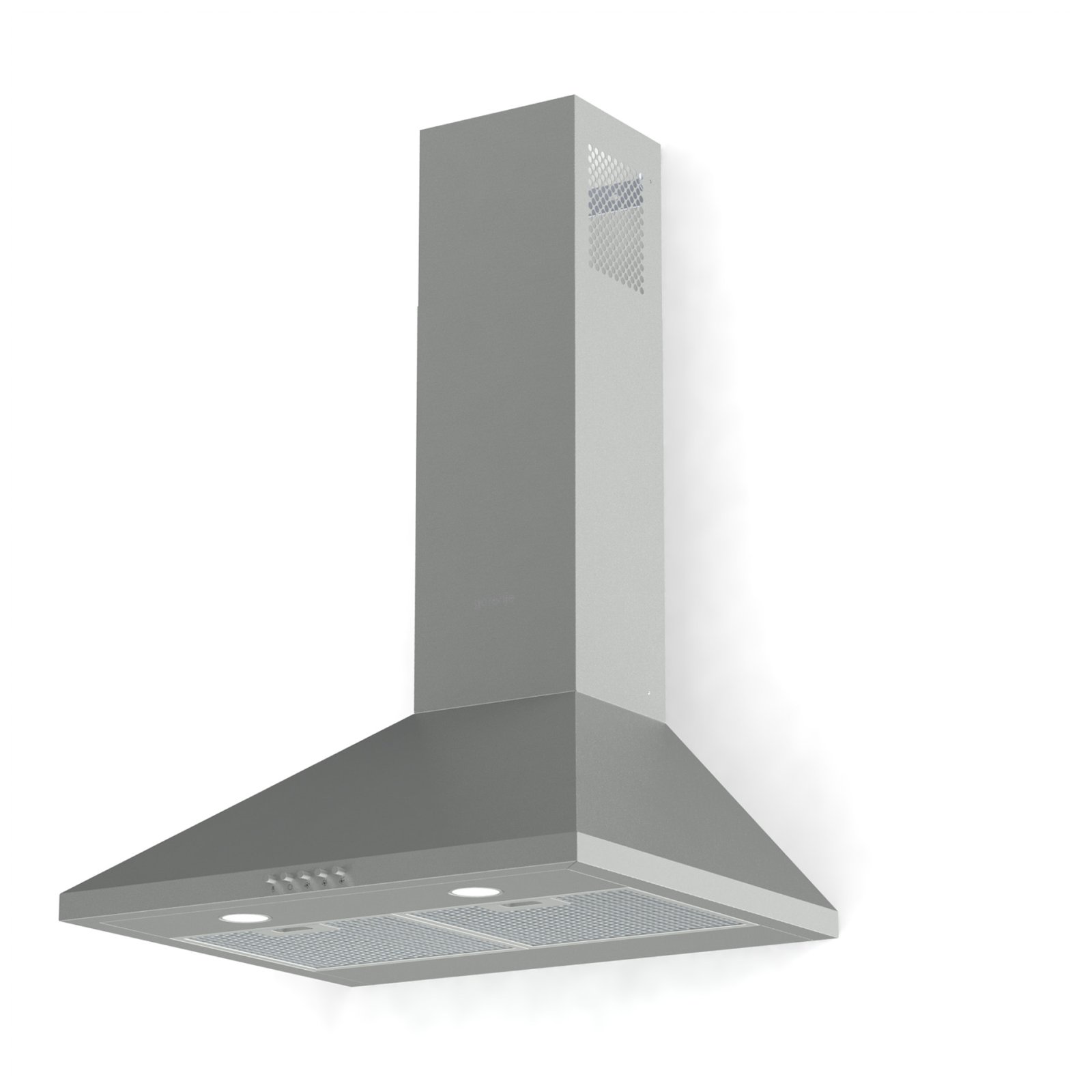

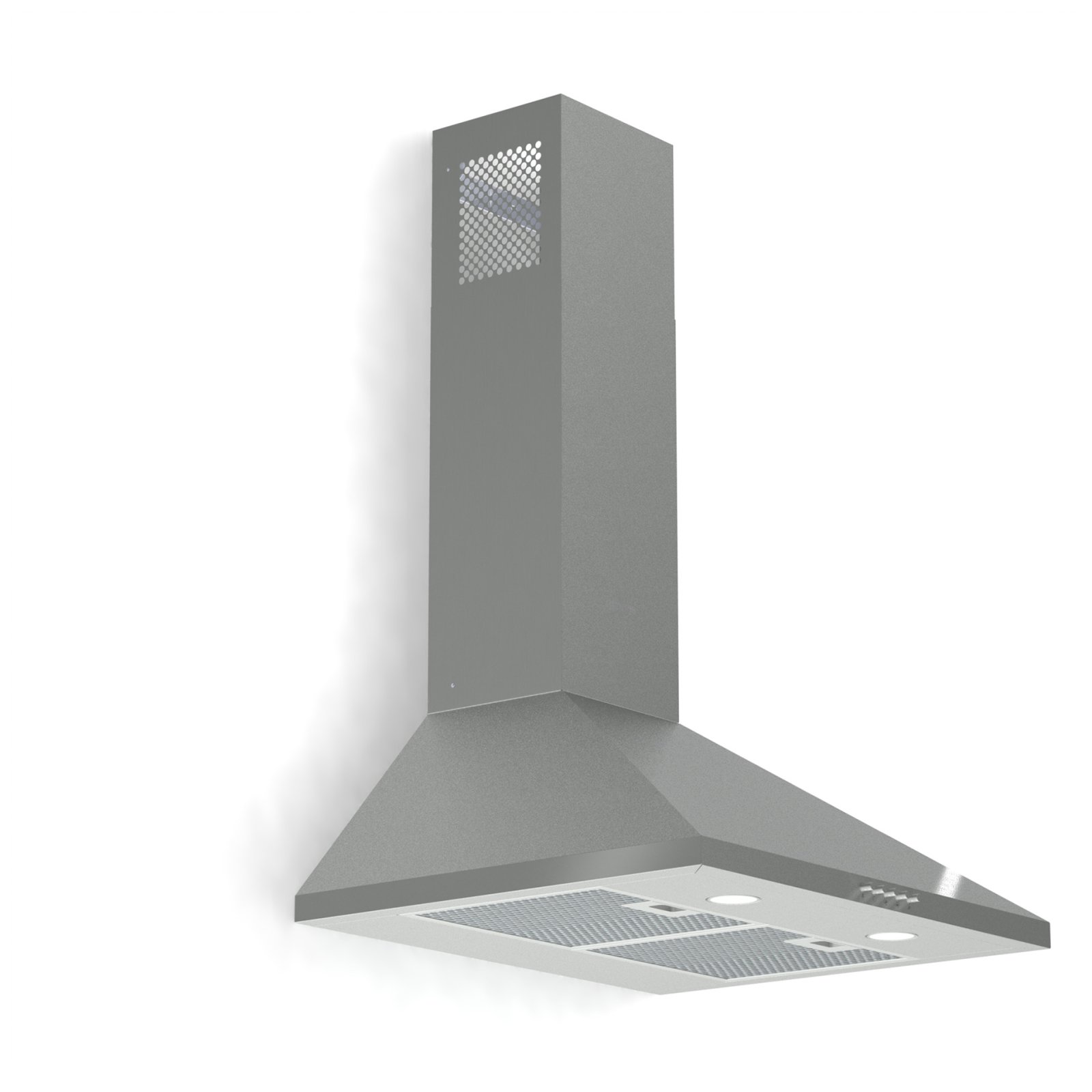

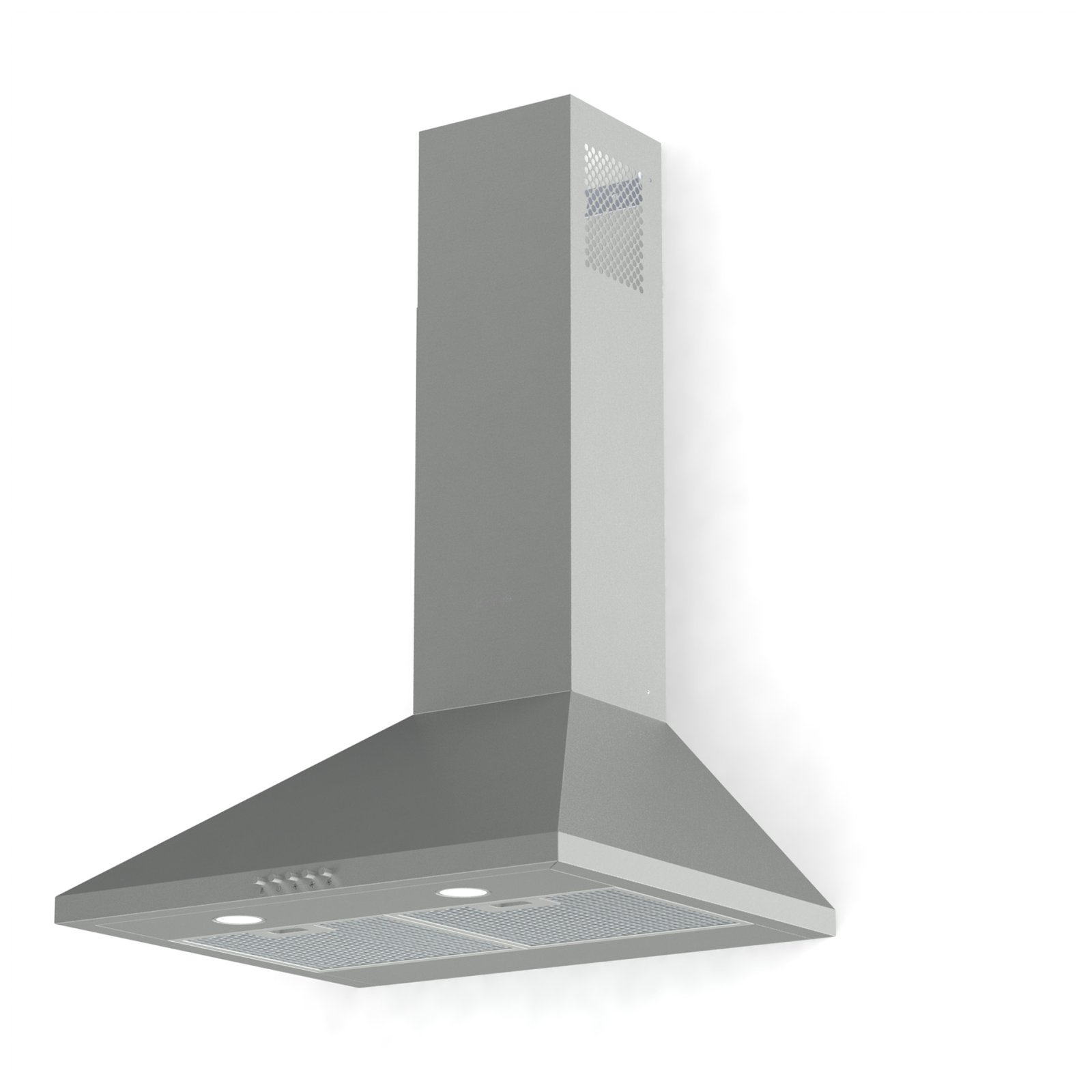

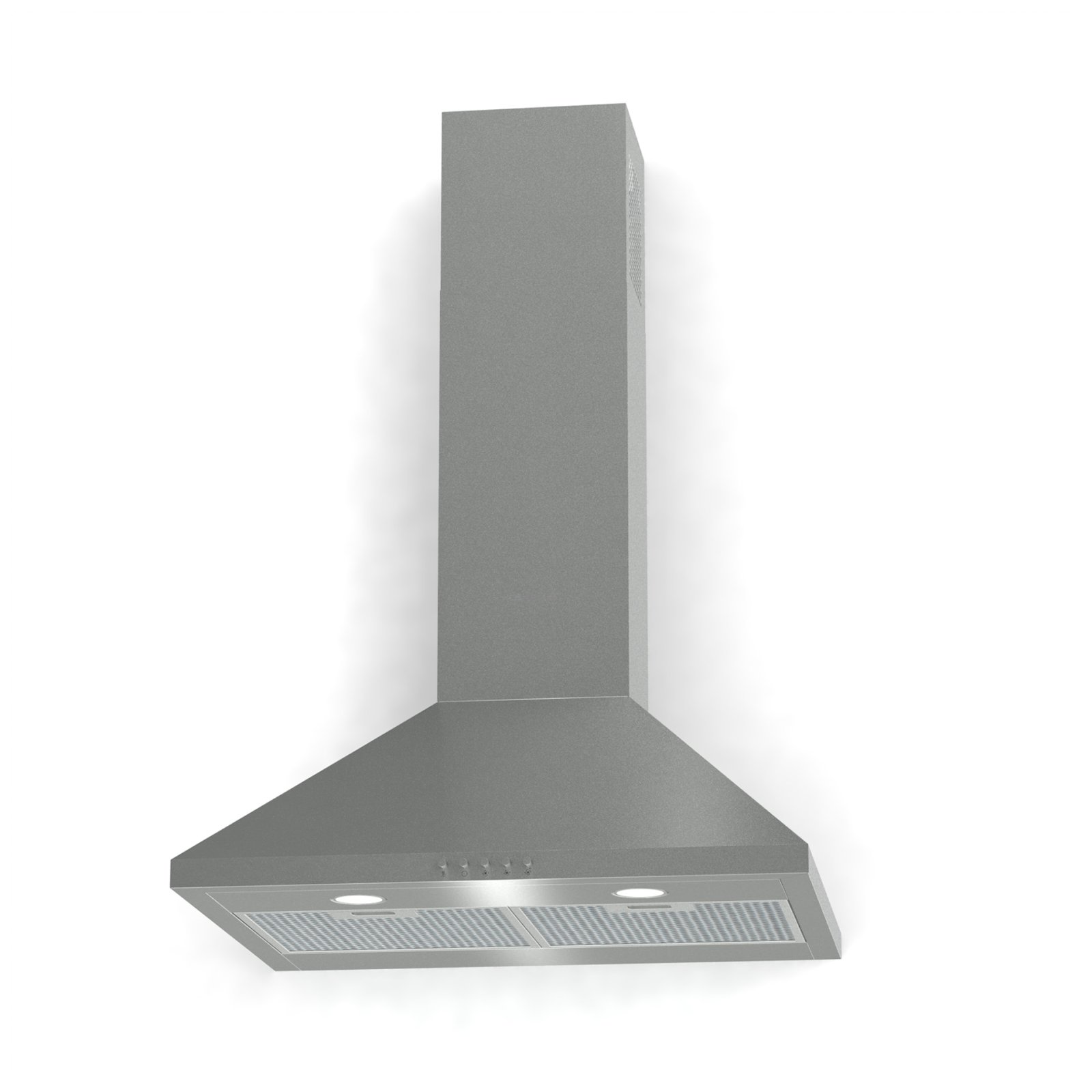

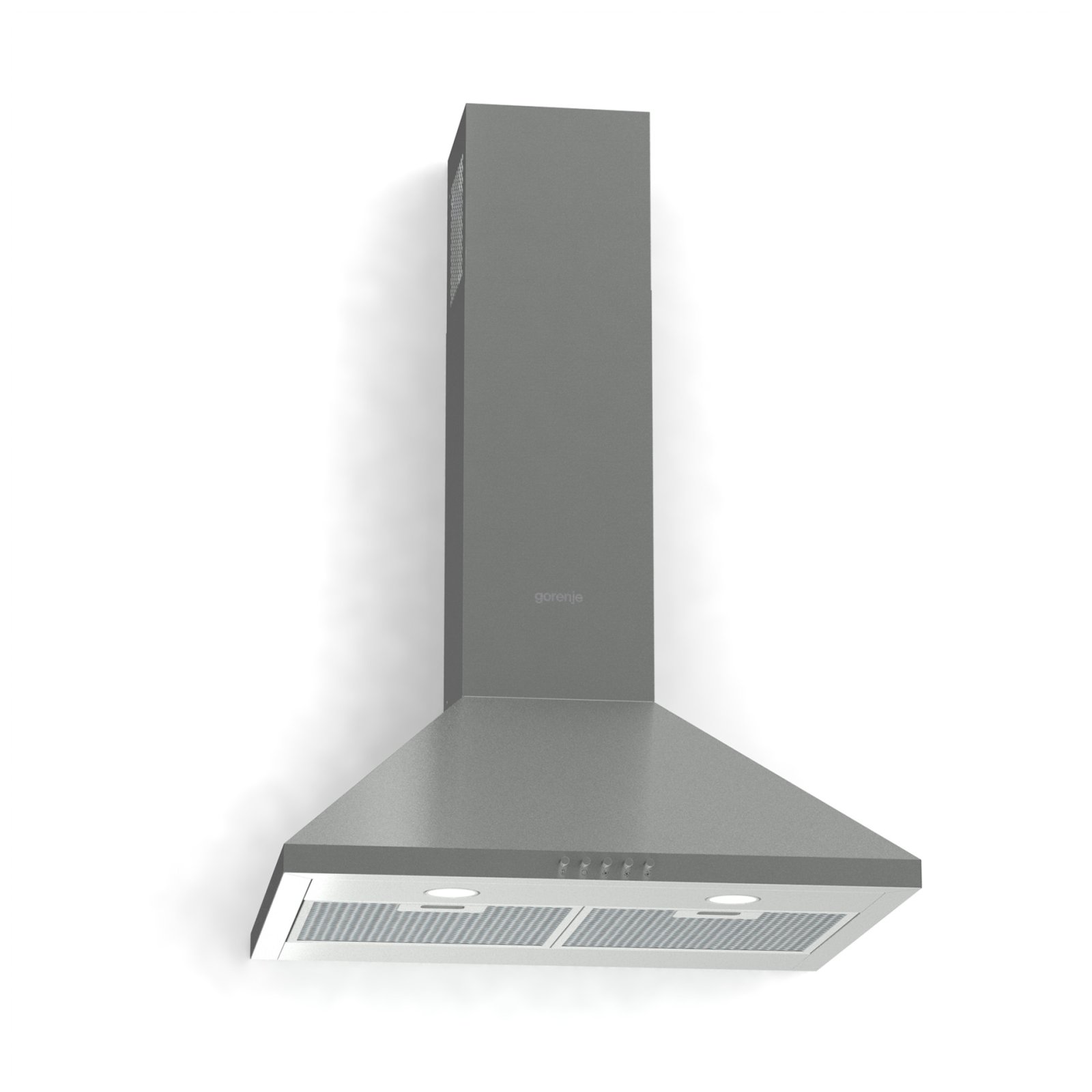

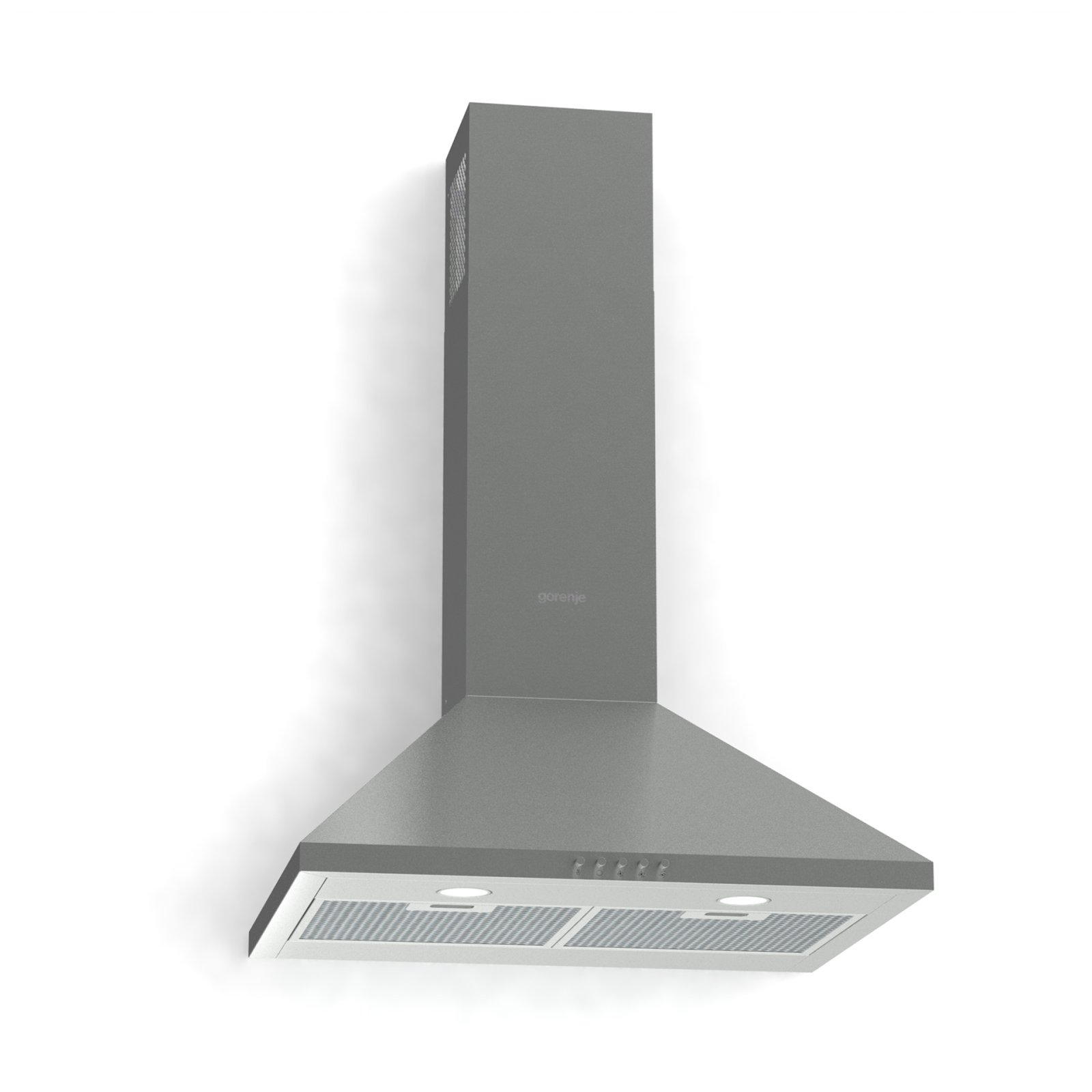

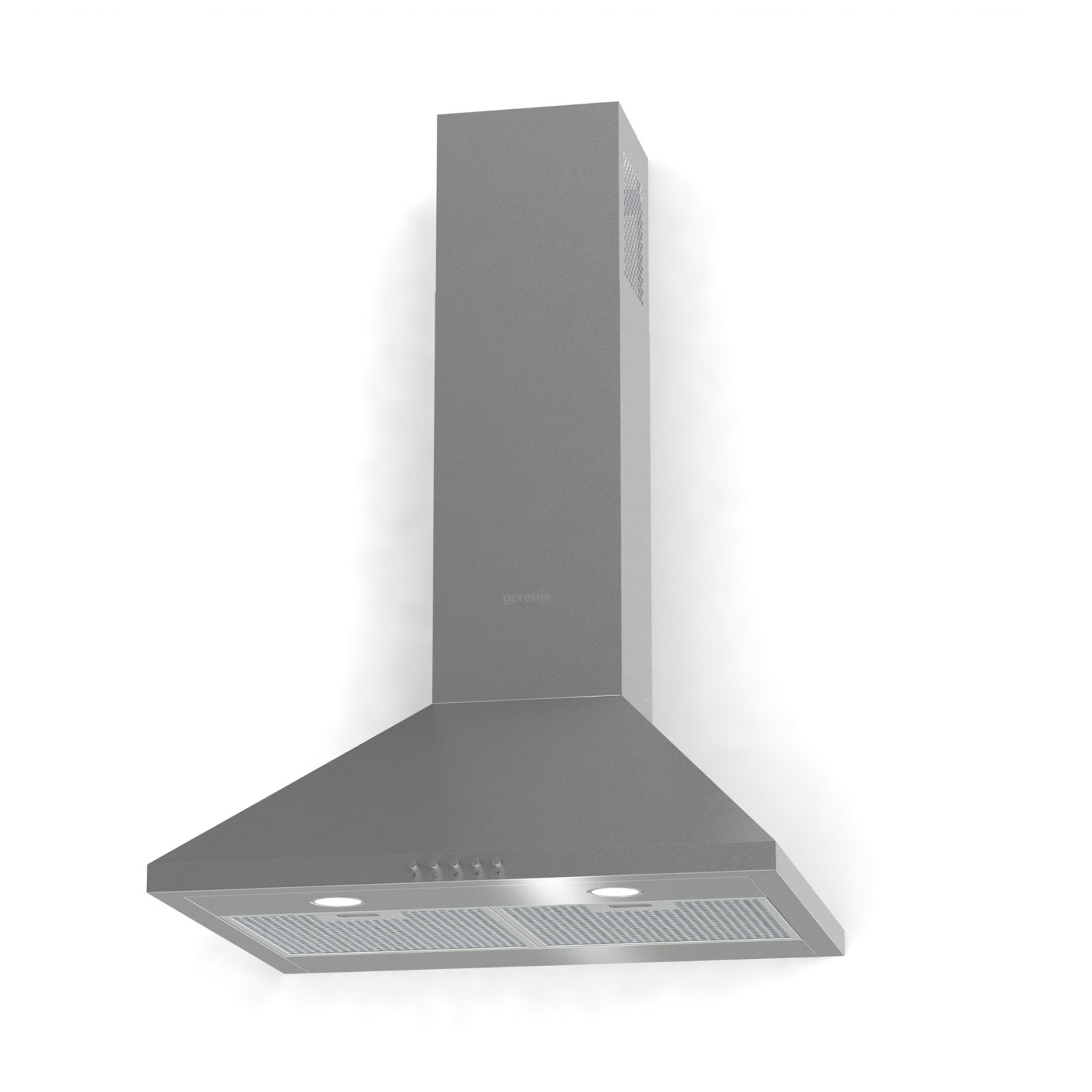

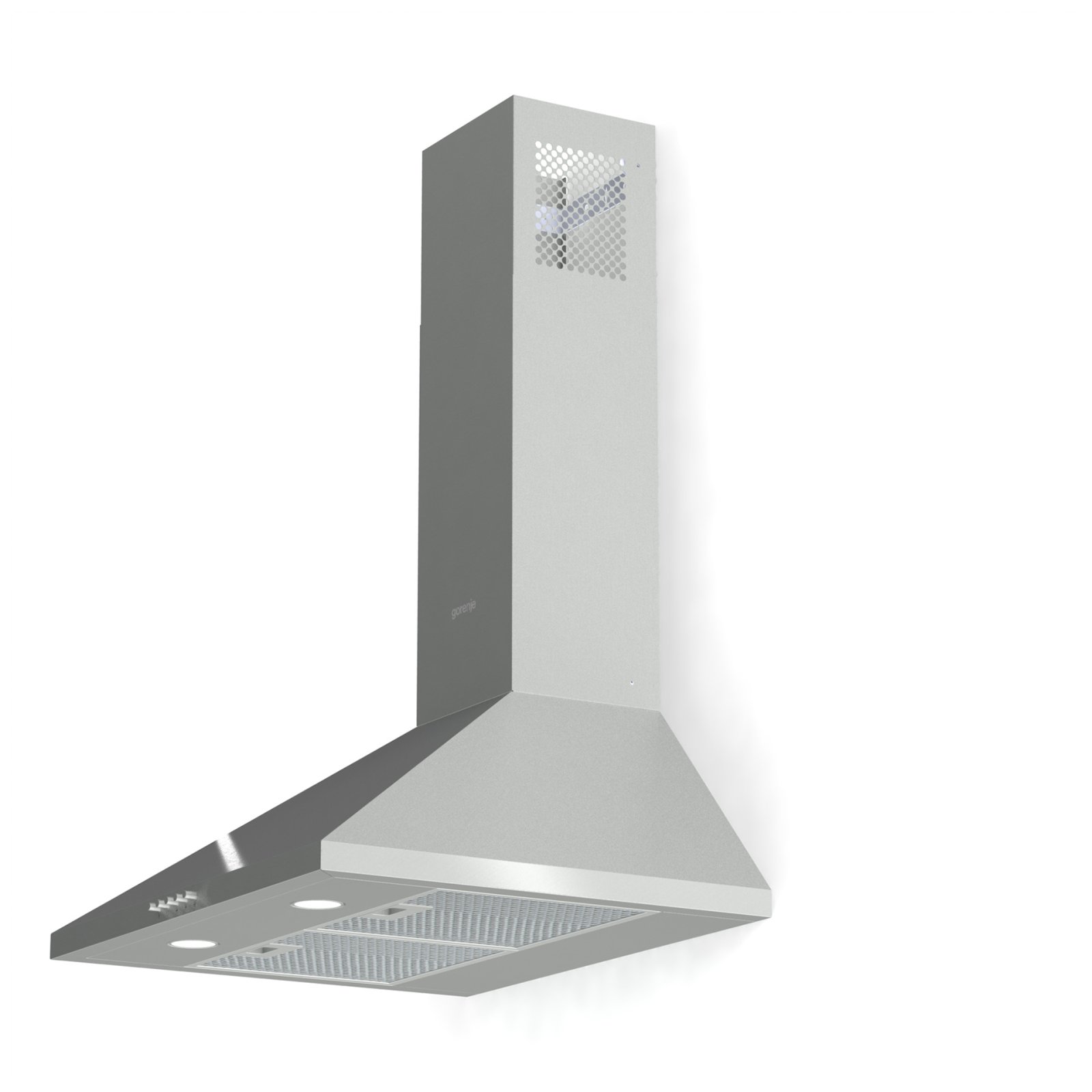

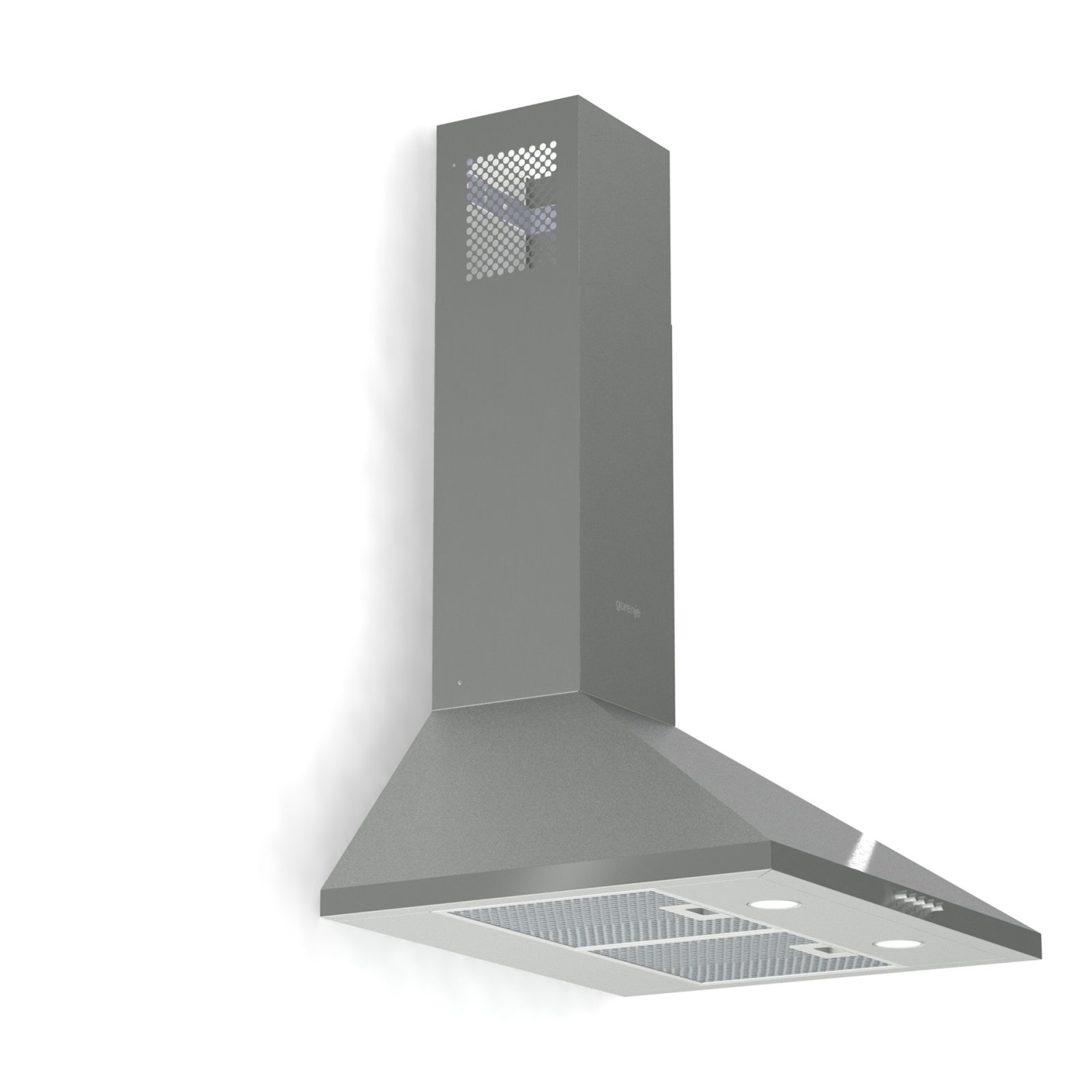

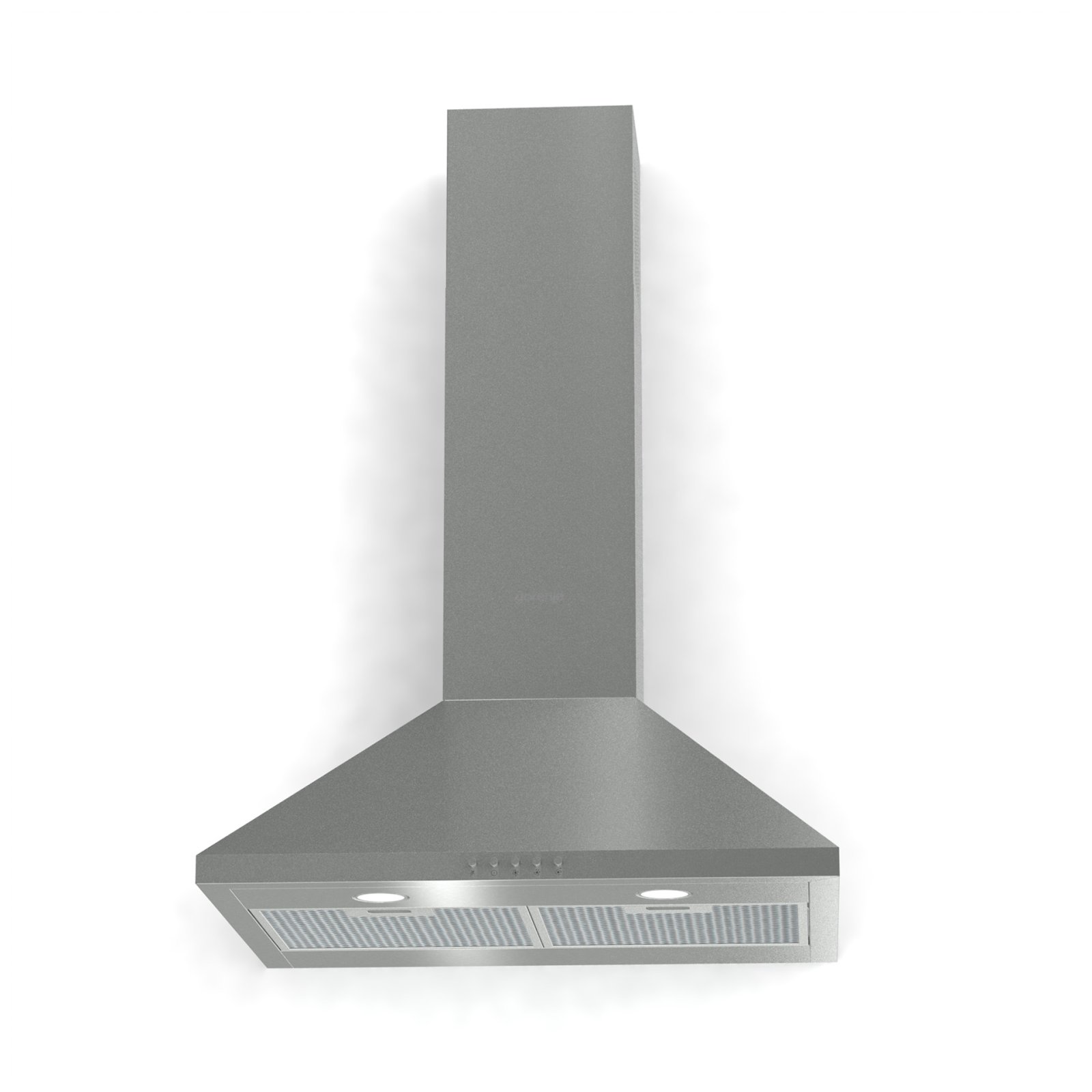

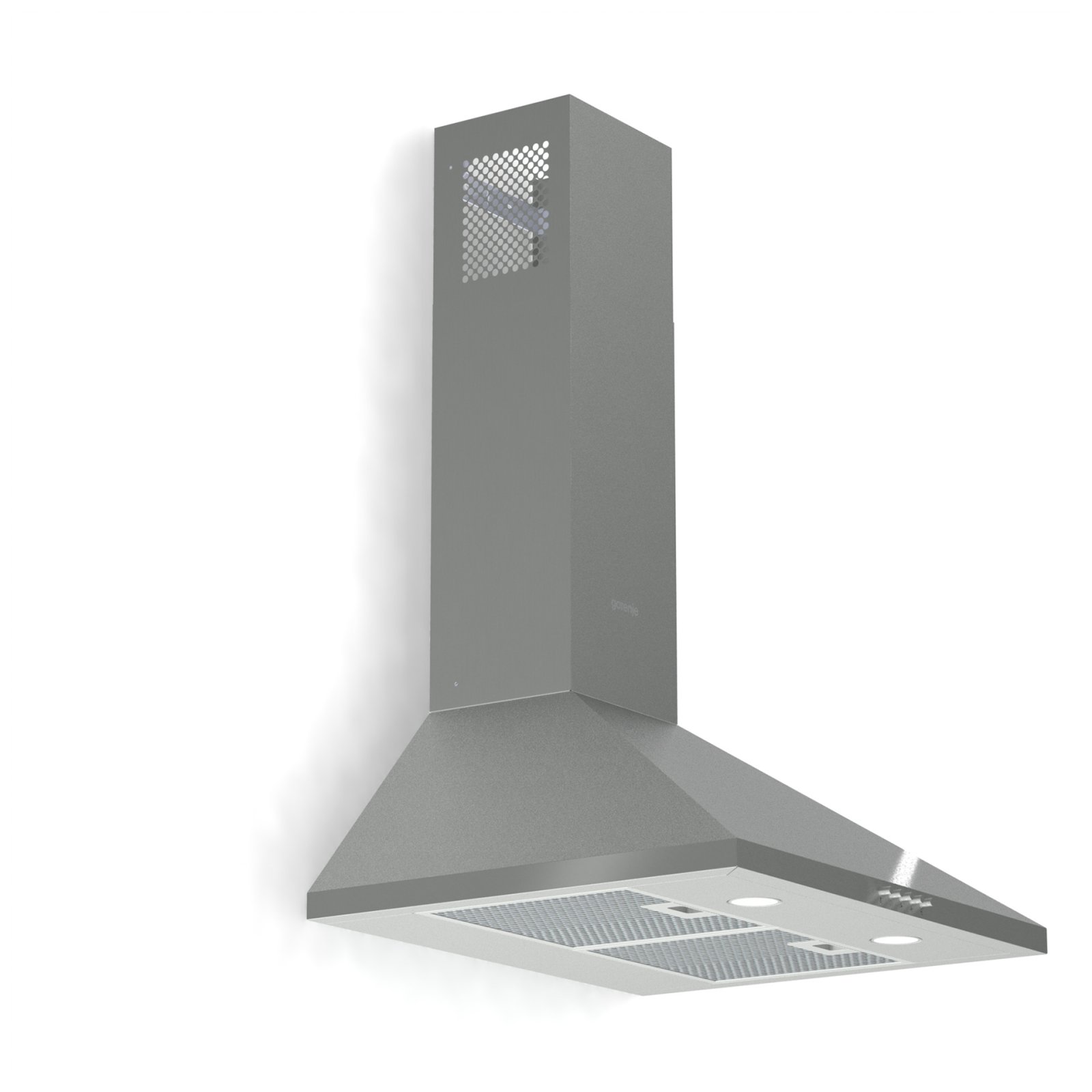

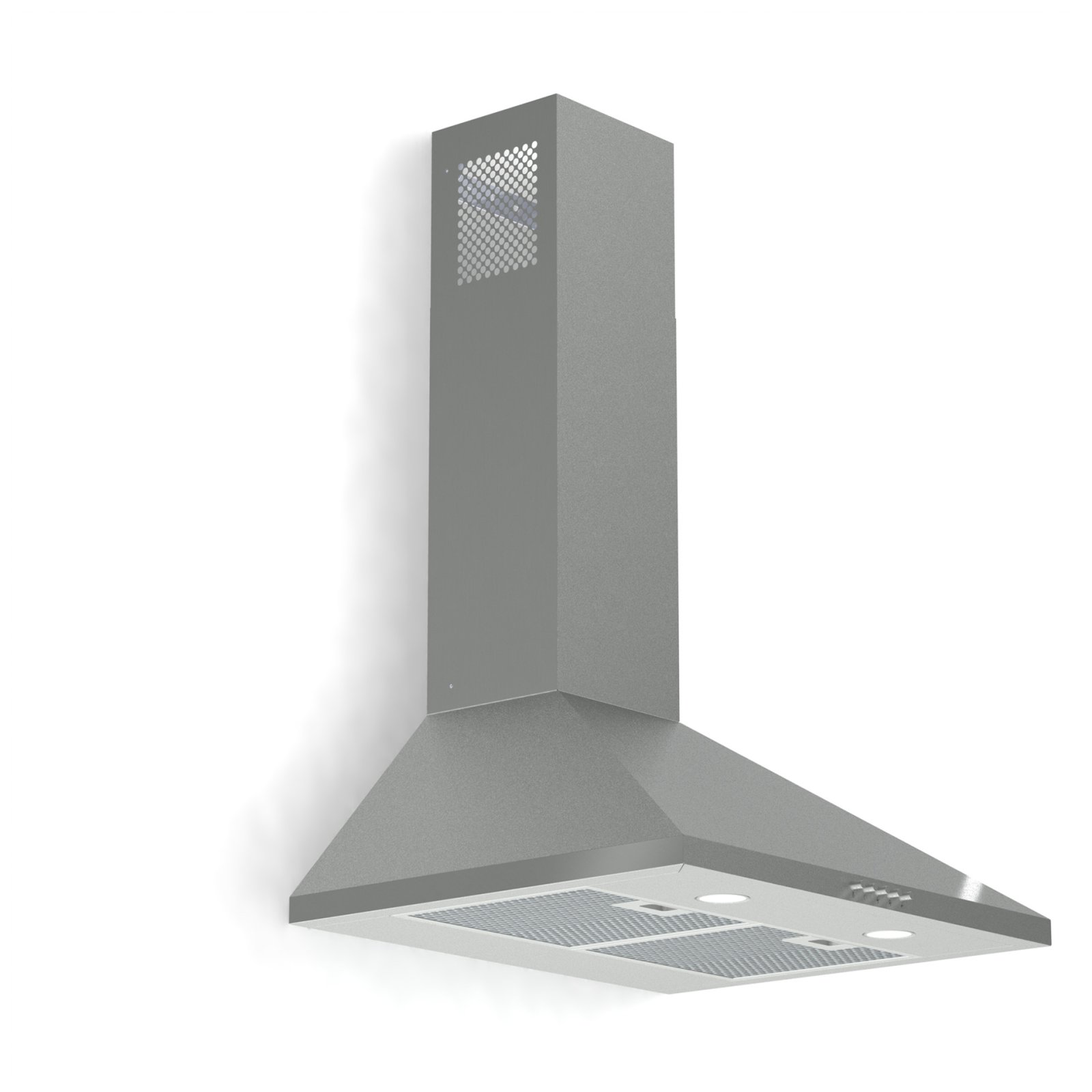

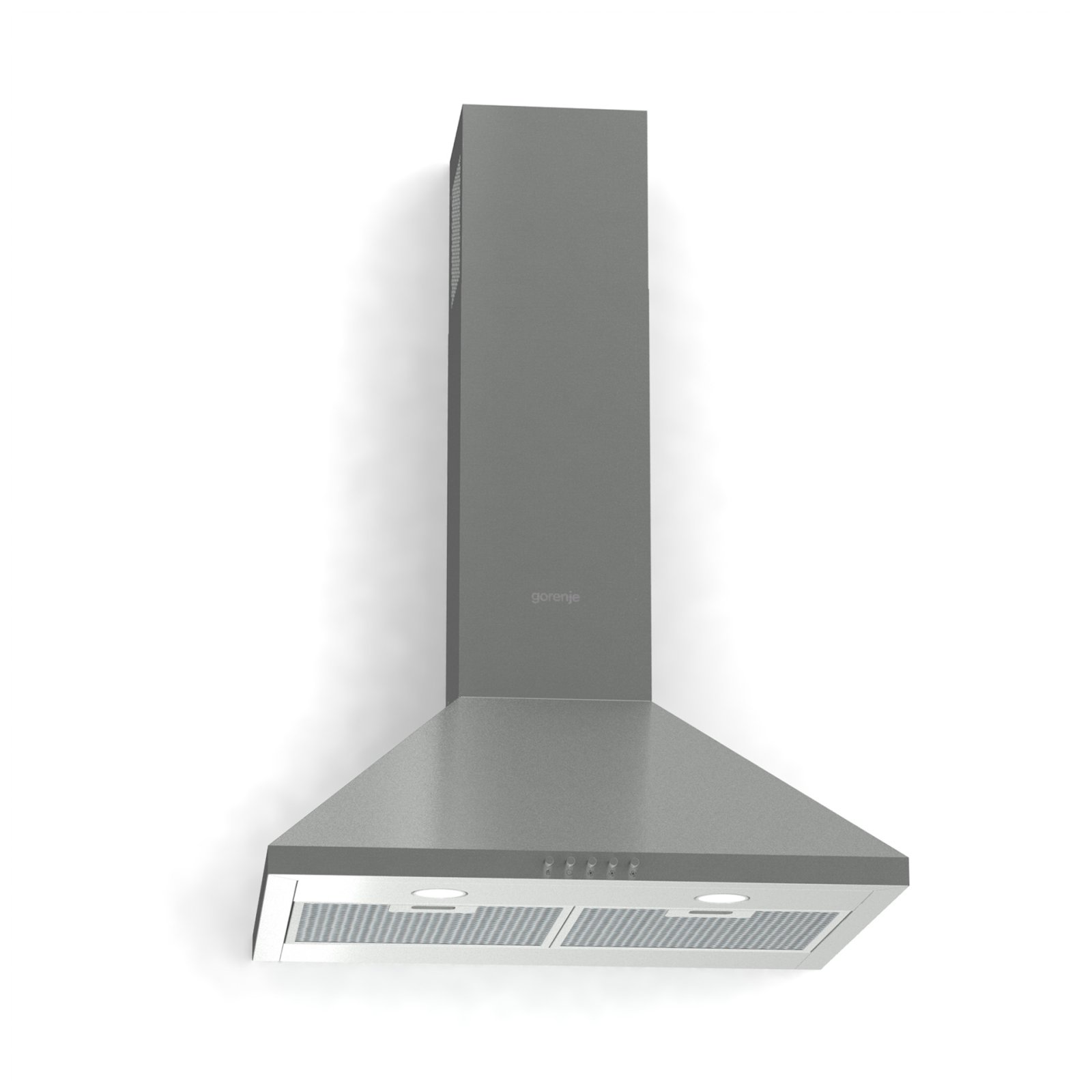

Wall mounted cooker hood
Venting with air extraction or recirculation
Energy class: C
Material of housing/chimney: stainless steel / stainless steel
Colour of housing/chimney: stainless steel / stainless steel
Lightning efficiency class: A
Grease filtering efficiency class: A
Fluid dynamic efficiency class: C
Maximum extraction rate by extraction operation: 505 m³/h
Maximum extraction rate by recirculation operation: 380 m³/h
Venting tube diameter: 15 cm
Air flow by extraction version, step 1: 230 m³/h
Air flow by extraction version, step 2: 372 m³/h
Air flow by extraction version, step 3: 505 m³/h
Mechanic control
Control setting: Button control
Number of speed positions: 3
TouchFree Inox
Lamp type: LED
On/off light switch
Number of lights: 2
Power of lights: 6 W
Filter material: Washable aluminium with polyurethane foam
Coal filter code (optional as separate purchase): 315275
Number of filters: 2
Motor type: Capacitor motor
Number of motors: 1
No return airflow flap: 150 mm
Max. noise level: 62 dB(A)re 1 pW
Height: 250 mm
Min. height of the chimney: 545 mm
Max. height of the chimney: 875 mm
Annual energy consumption: 62.2 kWh
Dimensions (W×H×D): 60 × 25 × 50 cm
Dimensions of packed product (W×H×D): 64.5 × 63.7 × 36.5 cm
Net weight: 8.6 kg
Gross weight: 11.2 kg
Connected load: 141 W
Nominal current of fuse: 10 amp
Product code: 514495
EAN code: 3838942072352
